Traditional Frame and Dome

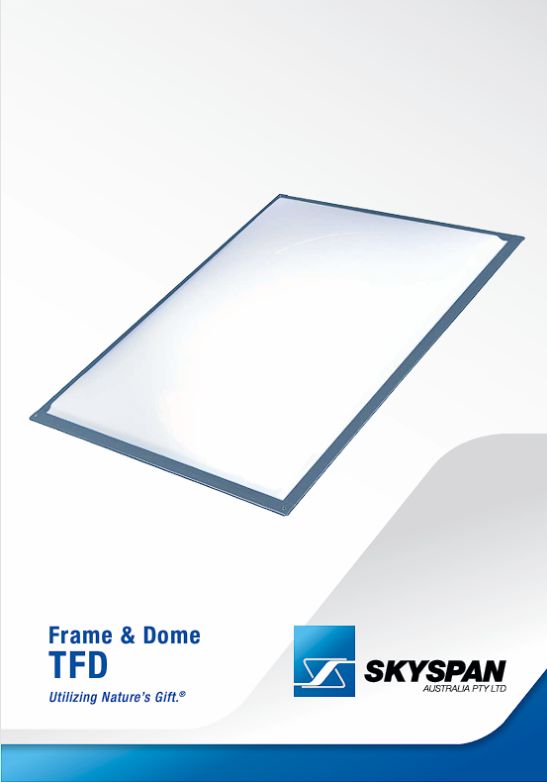

The Skyspan Frame & Dome (TFD) is the top part of the Skyspan Traditional Skylight without the flashing. TFD Skylights are used when the roof already has an existing fully flashed upstand, or the installer is providing their own flashing. Standard sizes will suit most existing skylights and can be custom-made to fit any rectangle or square skylight.

Technical Information

Technical Drawings

Drawings coming soon

Maintenance & Repair

Skylights should be inspected at least once per year and any build-up of leaves and rubbish be removed from around the skylight. Depending on the severity of the problem, this may be needed to be performed more often.

The Skyspan skylight is normally cleaned by the elements. At least once per year, wipe over with soap and water and a nonabrasive sponge. Avoid using solvents and thinners. Dust and wipe over to ensure that any build-up or caked dust is removed which could prematurely cause corrosion. Repeat as often as needed for each individual location.

Basic Stock Sizes
Square Rectangle
400 x 400mm 400 x 600mm
500 x 500mm 400 x 800mm
600 x 600mm 500 x 700mm
800 x 800mm 500 x 1100mm
900 x 900mm 600 x 1200mm
1000 x 1000mm 800 x 1100mm
1100 x 1100mm 400 x 1100mm
1200 x 1200mm 900 x 1200mm
650 x 650mm 500 x 800mm
1500 x 1500mm 500 x 1400mm
1800 x 1800mm 600 x 900mm
  650 x 1100mm
  800 x 1400mm
  900 x 1500mm
Installation Instructions
Assembly & Packing Time

1 - 5 Working Days

Description

The Skyspan Frame & Dome (TFD) is the top part of the Skyspan Traditional Skylight without the flashing. TFD Skylights are used when the roof already has an existing fully flashed upstand, or the installer is providing their own flashing. Standard sizes will suit most existing skylights and can be custom-made to fit any rectangle or square skylight.

The TFD frame and Trims are manufactured from Zincalume steel for durability. They can also be custom made in other materials including Stainless Steel, Aluminium and copper. The TFD Skylightis designed for economy, a low silhouette, and easy installation whilst bringing in abundant natural light.

The standard dome is formed from 3mm acrylic and 4.5mm for larger sizes. There are no fixings through the glazing to allow for thermal cycling. Tint and clear domes are also available.

The Skyspan skylight comes standard as a non-ventilated unit with the option of passive ventilation.

The Skyspan skylight is manufactured to comply with the Australia Standard AS4285 and is covered by a seven (7) year guarantee.

Product Options

Flashing Colour
* Note: build to order products are non returnable.
Select your product options first
Only %1 left
From As low as $278.00 EX GST
Product Code:
Traditional Frame and Dome
