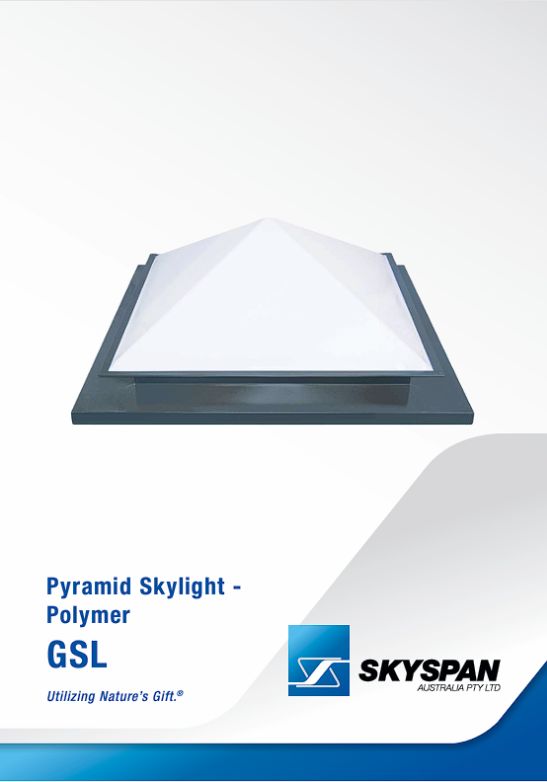

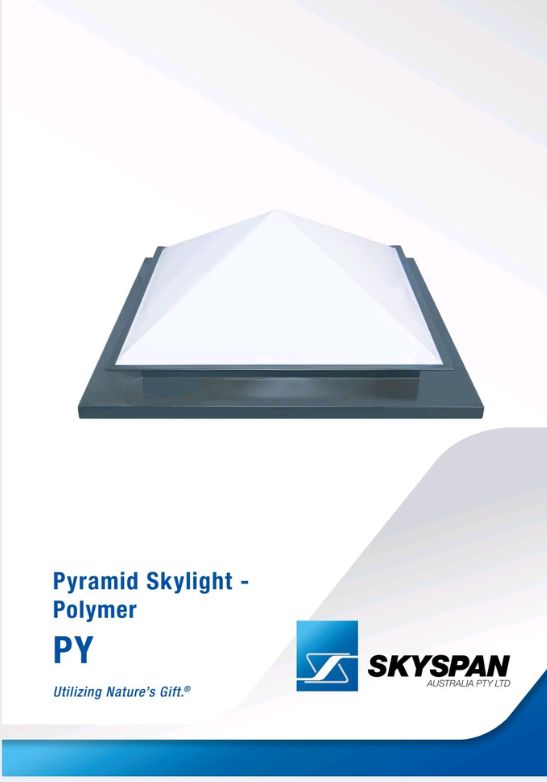

Pyramid Skylights
Skyspan Pyramid Skylight utilizes nature by bringing natural light into your home or workplace along with providing an aesthetic design to any building.
Technical Information
Technical Drawings
Maintenance & Repair
Skylights should be inspected at least once per year and any build up of leaves and rubbish be removed from around the skylight. Depending on the severity of the problem, this may be needed to be performed more often.
The Skyspan skylight is normally cleaned by the elements. At least once per year, wipe over with soap and water and a nonabrasive sponge. Avoid using solvents and thinners. Dust and wipe over to ensure that any build up or caked dust is removed which could prematurely cause corrosion. Repeat as often as needed for each individual location.
Basic Common Sizes
| 600 x 600mm | 1500 x 1500mm |
| 800 x 800mm | 1800 x 1800mm |
| 900 x 900mm | 2000 x 2000mm
(Temporary Unavailable) |
| 1000 x 1000mm | 2200 x 2200mm
(Temporary Unavailable) |
| 1100 x 1100mm | 2400 x 2400mm
(Temporary Unavailable) |
| 1200 x 1200mm |
Installation Instructions
Assembly & Packing Time
10 - 15 Working Days
Description
The Skyspan Pyramid skylight is the ultimate choice when it comes to Utilizing Nature’s Gift of natural lighting in your home. The Skyspan Pyramid skylight provides an aesthetic design to any building, creating an atmosphere of elegance and design. Rooms are provided with natural light away from the exterior walls, in cost and energy efficiency. Skyspan’s Pyramid skylights fit all types of roof profiles.
The complete unit is manufactured from Zincalume steel for durability and is designed for economy and easy installation.The Skyspan skylight can be supplied in a range of materials including aluminium, stainless steel and copper. The standard pyramid is formed from 3mm tint acrylic and 4.5mm tint acrylic for larger sizes. There are no fixings through the glazing to allow for thermal cycling. Clear and opal pyramids are also available.
The pyramids can also be manufactured in polycarbonate. The standard dome is formed from 3mm acrylic and 4.5mm for larger sizes. There are no fixings through the glazing to allow for thermal cycling. Tint and clear domes are also available.
The Skyspan skylight is manufactured to comply with the Australian Standard AS4285 and is covered by a seven (7) year guarantee.
The Skyspan skylight can be manufactured to cater for your individual needs and comes with a large range of options.
