GSW - Glass Skylight

The Skyspan Opening Roof Window is the ultimate choice when it comes to Utilizing Nature’s Gift of natural lighting in your home. The Skyspan GSW - Glass Skylight opens up rooms by bringing the goodness of natural light inside making it feel more open and comfortable. The GSW - Glass Skylight brings the luxurious option of natural ventilation when needed.

Technical Information

Description

The Skyspan Opening Roof Window is the ultimate choice when it comes to Utilizing Nature’s Gift of natural lighting in your home. Rooms are provided with natural light and ventilation, away from the exterior walls, in cost and energy efficiency.

The Opening Fixed Roof Window is opened by a manually operated chain winder and comes standard with handle for within reach situations. An eyelet and extension pole are an option for out of reach situations.

The Opening Fixed Roof Window comes standard with an insect screen.

The Opening Fixed Roof Window has two standard types of glazing.

Performance Laminated Glazing (PLG) is Single Glazed Safety Laminate Glass that resists impact penetration and PVB Interlayer that eliminates 99% of UV. PLG is built for Australian Standard AS1288 and is 12.38mm Glass.

Comfort Double Glazing (CDG) has all the benefits of Performance Laminated Glazing with added noise reduction and Energy performance.  Comfort double glazing is an outer pane of Toughened Safety Glass with a Low-E coating to maximise Light Transmittance and reduces Solar Heat Gain. With Argon Gas filled cavity for better energy performance and an inner Laminated pane for added safety. CDG is built for Australian Standard AS1288.

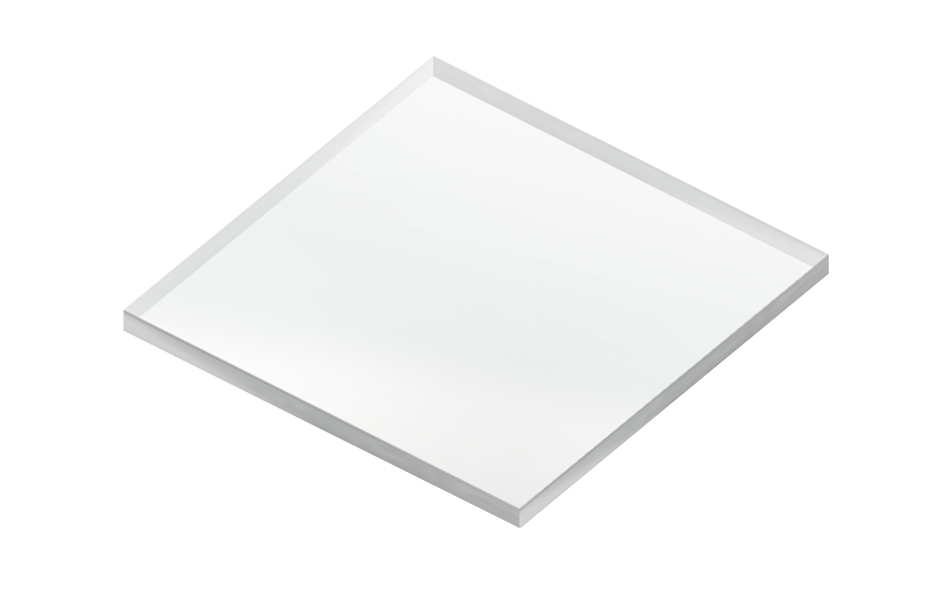

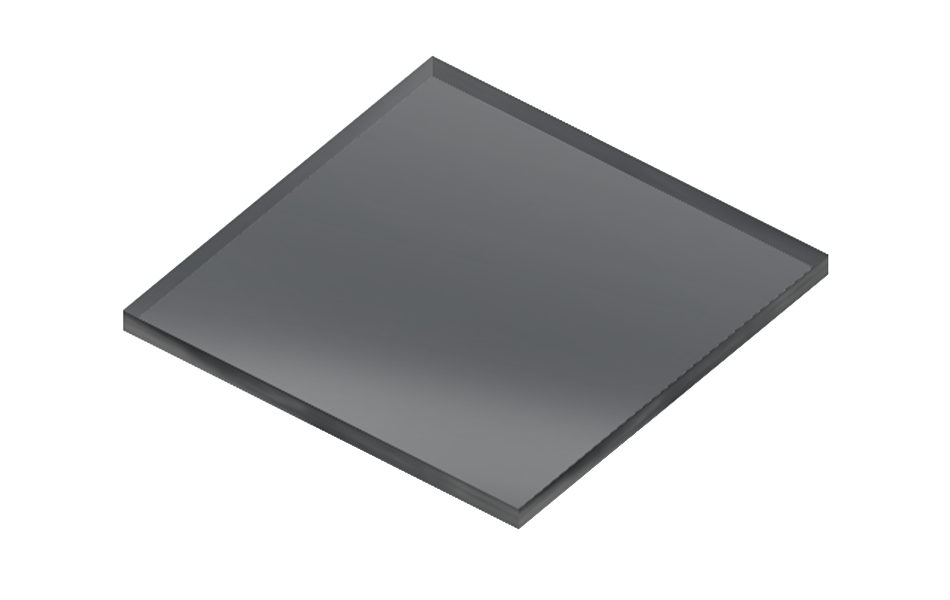

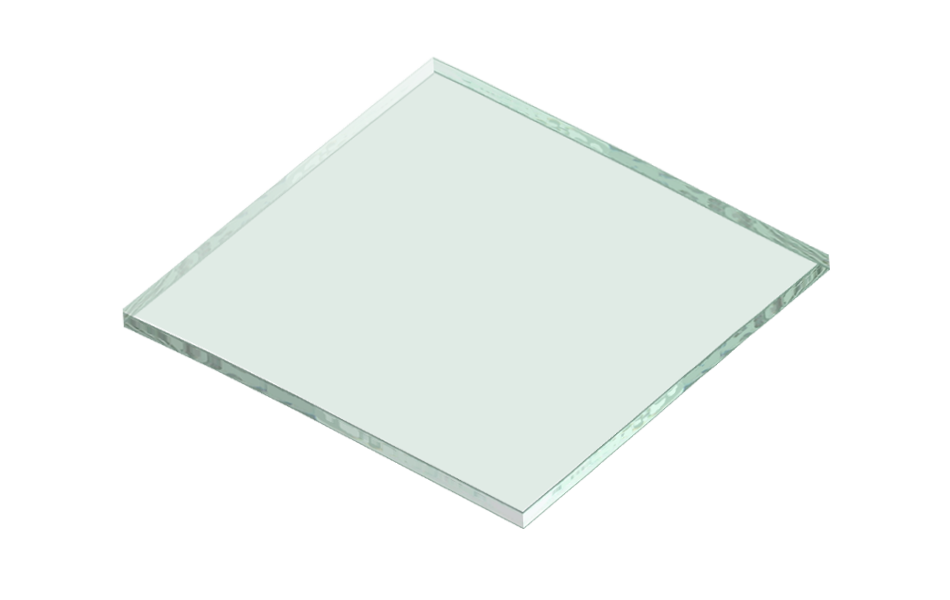

Glazing is Clear glass as standard. Grey Tint and White Translucent are available as an option.

The Skyspan Opening Roof Window is Australian made for Australian conditions. It comes with a one-piece flashing for complete water tightness and peace of mind. The Skyspan Roof Window can be installed at any roof pitch – eliminating the need for unsightly pitch adaptors.

Skyspan’s Opening Roof Window fits all roof profiles. The flashing is a one-piece unit designed to suit Australian roofs and Australian conditions. The standard unit is manufactured from Zincalume steel, aluminium and pine for durability and is designed for economy, a low silhouette and easy installation. The Skyspan Roof Window comes standard in a Slate Grey finish. Other colours are available to match standard roof colours.

The Skyspan Fixed Roof Windows is manufactured to comply with the Australian Standard AS4285 and is covered by a seven (7) year guarantee.

The Skyspan Opening Roof Window can be manufactured to cater for your individual needs and sizes and comes with a large range of options.

Maintenance & Repair

Skylights should be inspected at least once per year and any build-up of leaves and rubbish be removed from around the skylight. Depending on the severity of the problem, this may be needed to be performed more often.

The Skyspan GSW - Glass Skylight is normally cleaned by the elements. At least once per year, wipe over with soap and water and a nonabrasive sponge. Avoid using solvents and thinners. Dust and wipe over to ensure that any build up or caked dust is removed which could prematurely cause corrosion. Repeat as often as needed for each individual location.

Basic Common Sizes
Square Rectangle
400x400mm 400x600mm
500x500mm 400x800mm
600x600mm 400x1100mm
800x800mm 500x700mm
900x900mm 500x1100mm
1000x1000mm 500x1400mm
1100x1100mm 600x900mm
1200x1200mm 600x1200mm
800x1100mm
800x1400mm
Installation Instructions
Assembly & Packing Time

GSW - Glass Skylight Single Glazed      5 - 8 Working Days
GSW - Glass Skylight Double Glazed    10 - 15 Working Days

Product Options

Flashing Colour
* Note: build to order products are non returnable.
Select your product options first
Only %1 left
From As low as $1,116.00 EX GST
Product Code:
GSW - Glass Skylight
