GSLHB Skylight Hatch
GSLHB Skylight Hatch is used to give access to roof top areas and is often used to overcome height restrictions on buildings. Mostly seated above a staircase leading to a roof, the glazing then doubles as a glass roof when closed. Electric actuators make the operation effortless.
Technical Information
Description
SKYSPAN GSLHB Skylight Hatch is used to give access to roof top areas and is often used to overcome height restrictions on buildings. Mostly seated above a staircase leading to a roof, the glazing then doubles as a glass roof when closed. Electric actuators make the operation effortless.
Australian roof types including Corrugated, Metaldecks, Tile Roofs and Concrete Roofs. Suitable for any room where structurally compatible.
Glazing
Laminated glass must be used for skylights installed 3m or more above floor level. (AS1288)
Glazing
High performance double glazed hear strengthened laminated inner pane + 12mm Argon Gas + toughened monolic outer pane.
| Double in performance | ||
|---|---|---|
| Argon filled cavity increases energy efficiency. | Low-E coating maximises light transmittance & reduces solar heat gain. | Heat strengthened laminated inner glass resists impact protection, PVB interlayer elliminates 99% of UV. |
ELECTRICALLY OPERATED
- 240 Volts AC Power input
- 24 Volt DC Actuators
- Battery Backup System

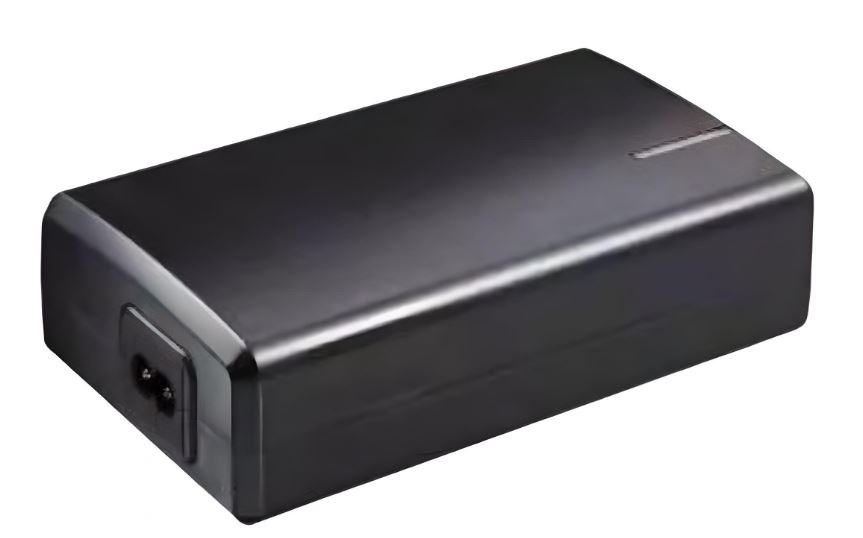

BACKUP BATTERY
Backup battery included for use in case of power failure.
ELECTRIC LINEAR ACTUATORS
Actuators make the opening operation effortless and near silent.

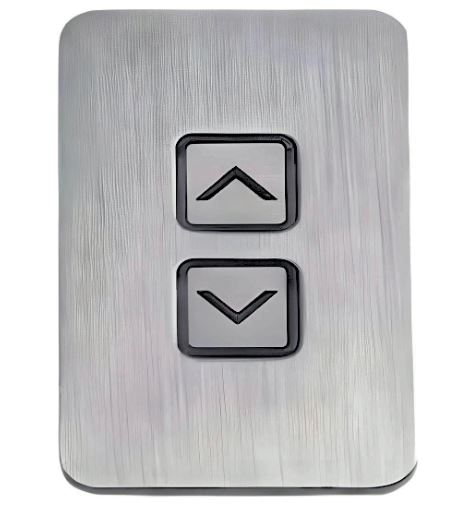

SWITCH
Deadman switch for safe operation.
Technical Drawings
Coming Soon!
Basic Common Sizes
| Square | Rectangle |
| 900x900mm | 900x2000mm |
| 1000x1000mm | 900x2500mm |
| 1100x1100mm | 900x3000mm |
| 1200x1200mm | 900x3500mm |
| 1300x1300mm | 900x4000mm |
| 1400x1400mm | 900x4500mm |
| 1500x1500mm | 1000x2500mm |
| 1600x1600mm | 1000x3000mm |
| 1700x1700mm | 1000x3500mm |
| 1800x1800mm | 1000x4000mm |
| 1900x1900mm | 1000x4500mm |
| 2000x2000mm | 1100x1500mm |
| 1100x2000mm | |
| 1100x2500mm | |
| 1100x3000mm | |
| 1100x3500mm | |
| 1100x4000mm | |
| 1100x4500mm | |
| 1200x1500mm | |
| 1200x2000mm | |
| 1200x2500mm | |
| 1200x3000mm | |
| 1200x3500mm | |
| 1200x4000mm | |
| 1200x4500mm |
