SB-0081 GCSL Steel Hob 5° Trimdek
SB-0179 GCSL Steel Hob
SB-0366 GCSL Concrete Hob 0° Circular Flashing
SB-0389 GCSL Concrete Hob 5° Circular Flashing

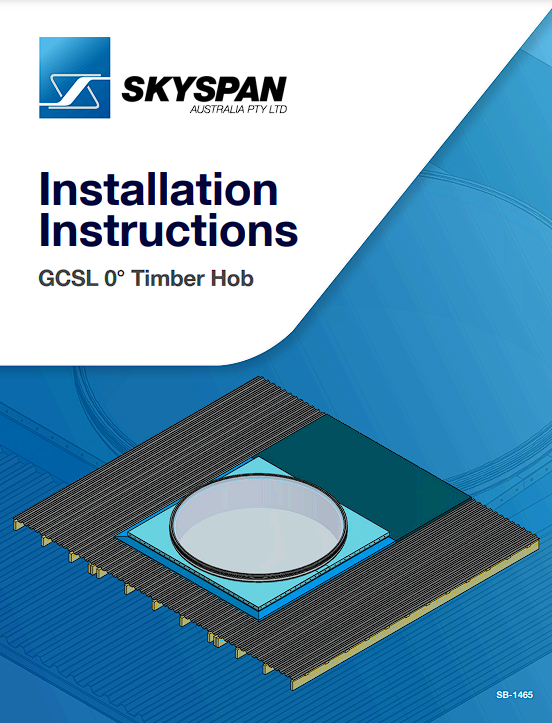

SB-1465 GCSL 0° Timber Hob
SB-1632 GCSL 5° Timber Hob
Certification
- Description
- Technical Drawings
- Dimensions
- Maintenance & Repair
- Installation Instructions
- Specifications
Skyspan Traditional skylight, also known as skylight domes, is an ideal choice for harnessing natural lighting in your home. This skylight provides rooms with natural light and ventilation, enhancing energy efficiency. Compatible with various Australian roof types, including Corrugated, Metaldecks, Tile Roofs, and Concrete Roofs, it is constructed from durable Zincalume steel and can be customized in materials like Stainless Steel, Aluminium, Galvanised, and Copper.
Designed for economy, low profile, and easy installation, the Traditional Skylight ensures abundant natural light with its 3mm acrylic (4.5mm for larger sizes) standard dome. Featuring no fixings through the glazing to accommodate thermal cycling, it offers options for tinted or clear domes. The skylight is available as a non-ventilated unit with the choice of passive or fan-forced ventilation. Compliant with Australian Standard AS4285, it is backed by a seven-year guarantee and can be tailored to individual preferences with a range of options.

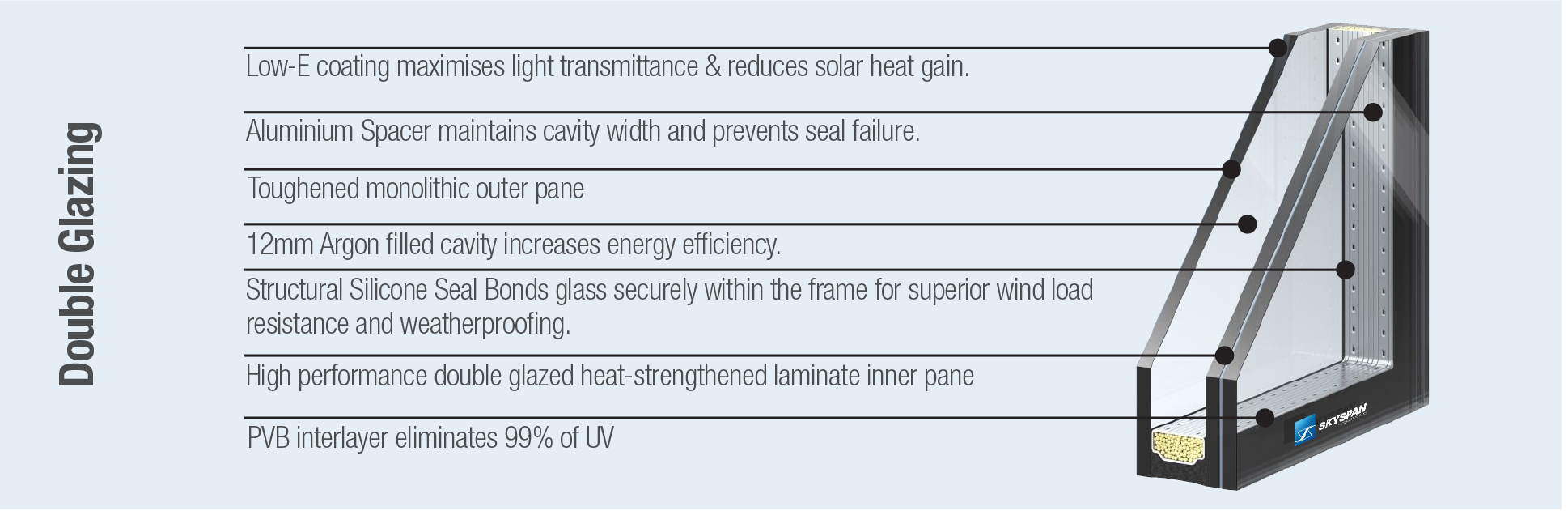

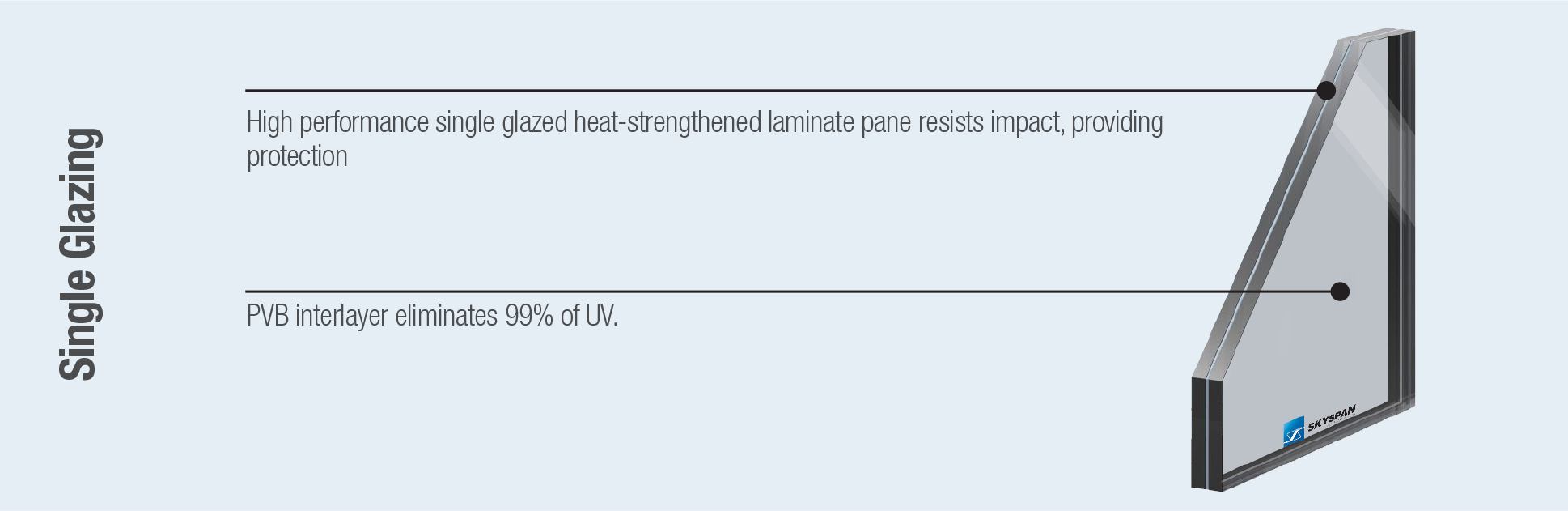

High Performance Custom Heat-Strengthened Laminate Glazing
All Skyspan Glazing is engineered to meet the requirements of AS1288:2021 - Glass in Building, including Section 6 for overhead glazing, ensuring safety, durability, and compliance in all applications.
Tint Options

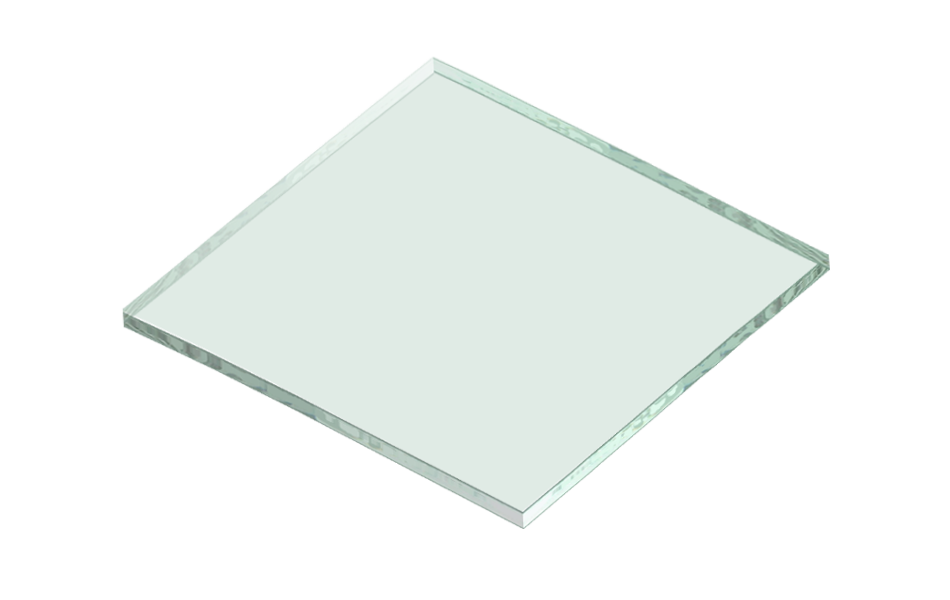

Clear (standard)

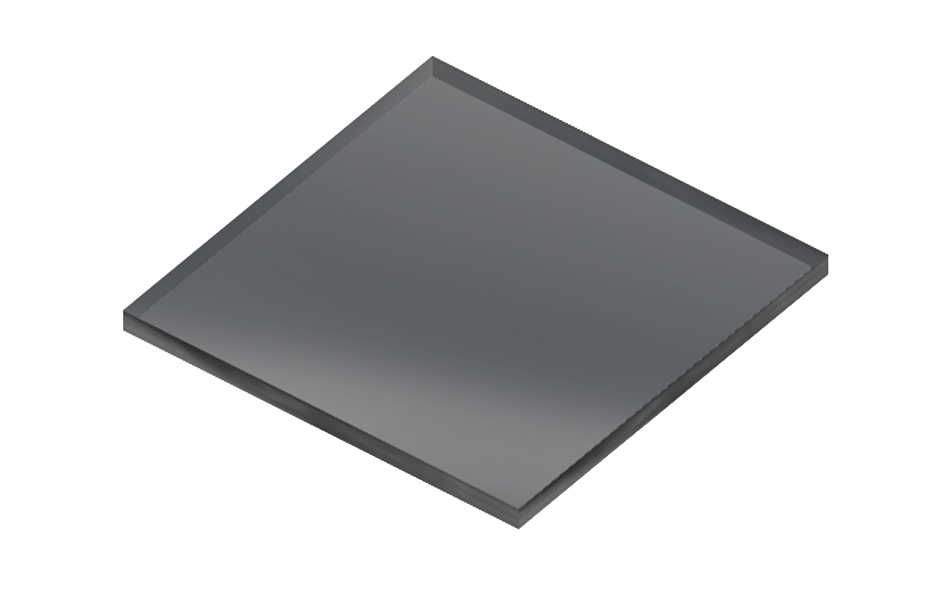

Grey Tint

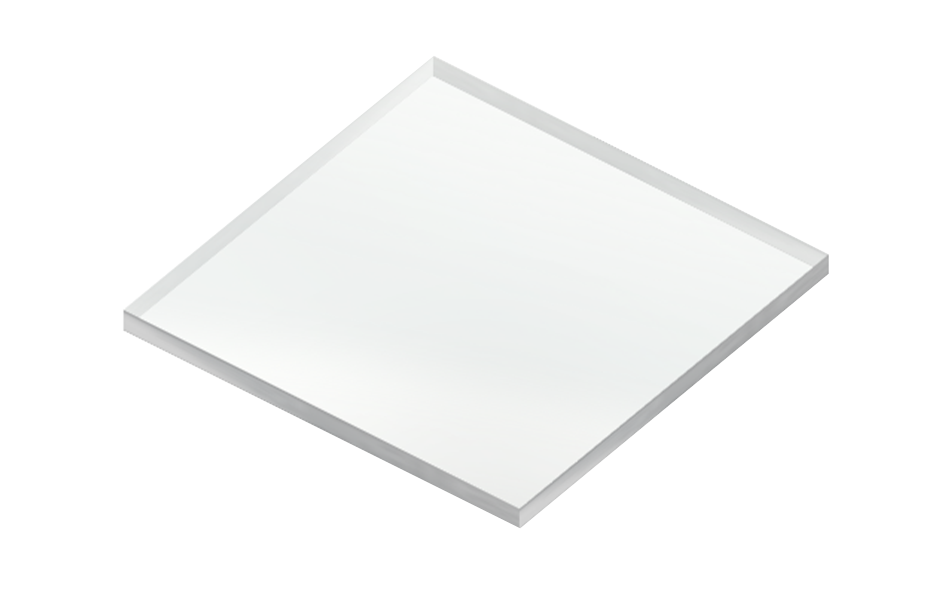

White Translucent
Custom tinting options and Ceramic Frit Patterns also available. Above images are for illustrative purposes only—actual tint colors may vary due to lighting and screen display.
Maintenance & Repair
Skylights should be inspected at least once per year and any build up of leaves and rubbish be removed from around the skylight. Depending on the severity of the problem, this may be needed to be performed more often.
The Skyspan skylight is normally cleaned by the elements. At least once per year, wipe over with soap and water and a nonabrasive sponge. Avoid using solvents and thinners. Dust and wipe over to ensure that any build up or caked dust is removed which could prematurely cause corrosion. Repeat as often as needed for each individual location
Assembly & Packing Time
20 - 25 Working Days
Downloadable Forms
GCSL Brochure
We are currently updating all our technical drawings, please contact [email protected] for the most up to date drawings for your desired product(s).
|
INTERNAL DIAMETER |
SINGLE GLAZED CODE |
DOUBLE GLAZED CODE |
|
600mm Diameter |
GCSL600AU-SG |
GCSL600AU-DG |
|
700mm Diameter |
GCSL700AU-SG |
GCSL700AU-DG |
|
800mm Diameter |
GCSL800AU-SG |
GCSL800AU-DG |
|
900mm Diameter |
GCSL900AU-SG |
GCSL900AU-DG |
|
1000mm Diameter |
GCSL1000AU-SG |
GCSL1000AU-DG |
|
1100mm Diameter |
GCSL1100AU-SG |
GCSL1100AU-DG |
|
1200mm Diameter |
GCSL1200AU-SG |
GCSL1200AU-DG |
|
1300mm Diameter |
GCSL1300AU-SG |
GCSL1300AU-DG |
|
1400mm Diameter |
GCSL1400AU-SG |
GCSL1400AU-DG |
|
1500mm Diameter |
GCSL1500AU-SG |
GCSL1500AU-DG |
|
1600mm Diameter |
GCSL1600AU-SG |
GCSL1600AU-DG |
|
1700mm Diameter |
GCSL1700AU-SG |
GCSL1700AU-DG |
|
1800mm Diameter |
GCSL1800AU-SG |
GCSL1800AU-DG |
|
1900mm Diameter |
GCSL1900AU-SG |
GCSL1900AU-DG |
|
2000mm Diameter |
GCSL2000AU-SG |
GCSL2000AU-DG |
|
2100mm Diameter |
GCSL2100AU-SG |
GCSL2100AU-DG |
|
2200mm Diameter |
GCSL2200AU-SG |
GCSL2200AU-DG |
|
2300mm Diameter |
GCSL2300AU-SG |
GCSL2300AU-DG |
|
2400mm Diameter |
GCSL2400AU-SG |
GCSL2400AU-DG |
|
2500mm Diameter |
GCSL2500AU-SG |
GCSL2500AU-DG |
Skylights should be inspected at least once per year and any build up of leaves and rubbish be removed from around the skylight. Depending on the severity of the problem, this may be needed to be performed more often.
The Skyspan skylight is normally cleaned by the elements. At least once per year, wipe over with soap and water and a nonabrasive sponge. Avoid using solvents and thinners. Dust and wipe over to ensure that any build up or caked dust is removed which could prematurely cause corrosion. Repeat as often as needed for each individual location.
The Installation Instructions offer a detailed, step-by-step guide for installing the GXL Skylight on various roof structures.
Overlap pre-assembled skylight with apron flashing to the hob. See figure above for the pre-assembled view to be fixed.
Specifications
Gauzy
Skyspan's Traditional skylight, also known as skylight domes, is an ideal choice for harnessing natural lighting in your home. This skylight provides rooms with natural light and ventilation, enhancing energy efficiency. Compatible with various Australian roof types, including Corrugated, Metaldecks, Tile Roofs, and Concrete Roofs, it is constructed from durable Zincalume steel and can be customized in materials like Stainless Steel, Aluminium, Galvanised, and Copper.
Flashing & Hob Types
Designed for economy, low profile, and easy installation, the Traditional Skylight ensures abundant natural light with its 3mm acrylic (4.5mm for larger sizes) standard dome. Featuring no fixings through the glazing to accommodate thermal cycling, it offers options for tinted or clear domes. The skylight is available as a non-ventilated unit with the choice of passive or fan-forced ventilation. Compliant with Australian Standard AS4285, it is backed by a seven-year guarantee and can be tailored to individual preferences with a range of options.
Glass Options
Skyspan's Traditional skylight, also known as skylight domes, is an ideal choice for harnessing natural lighting in your home. This skylight provides rooms with natural light and ventilation, enhancing energy efficiency. Compatible with various Australian roof types, including Corrugated, Metaldecks, Tile Roofs, and Concrete Roofs, it is constructed from durable Zincalume steel and can be customized in materials like Stainless Steel, Aluminium, Galvanised, and Copper.
Velux VCS Skylight,
The ultimate flat roof skylight that provides abundant daylight and controllable ventilation. Features a solar panel that captures available daylight to recharge a highly efficient, concealed battery-powered operator and control system.
Skyspan's CSL Circular skylight,
utilizes nature by bringing natural light into your home or work place along with providing an aesthetic circular design to any building.
